Common model LED backlit signs

Built by 3D fabricated metal signs shell, laser cutting acrylic back-panel and LED lights be placed in the signs shell, must off the backing wall, the reverse channel letters and logos have very beautiful halo effect, they are one of the most common LED channel signs, perfect for indoor outdoor business, building, wall and home.

Detail of Common model LED backlit signs

Common model LED backlit signs

Features

Requested minimum width of strokes
10mm(0.39")
Requested minimum height of letters
80mm(3.15")
Default thickness
25mm(1")
Opal Acrylic Back-panel
In the metal signs shell, invisible
Production time
In 15 business days by default
Installation
Must off backing wall
  • For outdoor common model LED backlit signs, we need the Min. width of strokes reach 10mm(0.39"), and for indoor signs, it could be 8mm(0.32") or even smaller sometimes, depending on the details of font.
  • Too small letters have limited space in the signs shell, causing too hard to place the LED lights evenly, unless using PCB LED, which fit for the mass production only.
  • In order to get the best halo effect, we suggest making this type of LED backlit signs off the wall about 10mm~20mm (0.39"~0.79")
  • Since this type of LED backlit signs must be off the wall, we suggest hiring the professional workers to install the signs, so that the surface of all the individual parts could be in one plane.

Metal Signs Shell

Material
304/316 stainless steel
Process
Fabrication, laser cutting, laser welding
Default thickness
25mm(1")
Surface finishes
  • Mirror polished stainless steel
  • Brushed stainless steel
  • Gloss powder coat paints
  • Semi-gloss powder coat paints
  • Flat powder coat paints
  • Mirror polished gold plating
  • Brushed gold plating
  • Angel hair gold plating
  • Mirror polished rose gold plating
  • Brushed rose gold plating
  • Angel hair rose gold plating
  • Mirror polished titanium plating
  • Brushed titanium plating
  • Angel hair titanium plating
  • Mirror polished copper plating
  • Brushed copper plating
  • Angel hair copper plating
  • Mirror polished brass plating
  • Brushed brass plating
  • Angel hair brass plating
  • Mirror polished bronze plating
  • Brushed bronze plating
  • Angel hair bronze plating
  • Vintage copper
  • Vintage brass
  • Vintage bronze
  • Angel hair vintage brass
  • Angel hair vintage copper
  • Angel hair vintage bronze
  • Metallic paint
  • Wood Grain
  • 304 stainless steel fit for most surrounding, 316 stainless steel would be used for the signs in marine environments.
  • The Plating process, vintage process and wood grain process would be finished by our partner, which would cause about an additional 2 business days for the production.

LED lights

LED type
LED module, LED strip, PCB LED
Life time
More than 100,000 hours
Lighting color
  • White (about 6000k color temperature)
  • Warm white (about 4000k color temperature)
  • Red
  • Blue
  • Green
  • Yellow
  • Orange(RGB)
  • Pink(RGB)
  • Purple(RGB)
  • Addressable RGB/RGBW LEDs
  • Using the BlueView brand LED by default. Also have Cree brand LED.
  • For the outdoor signs we will use the water-proof LED lights.

Back panel

Material
Acrylic
Process
Laser cutting
Default thickness
3mm (0.12")
  • Using the DonChamp brand acrylic by default. Also has the Mitsubishi brand and Degussa brand.
  • The acrylic back-panel is in the metal signs shell and it is invisible from the front or from the side.

Electrical Wiring

Type
Plenum copper wire by default
Specification
1.5mm2 (AWG 16) by default
Default Length
60cm(23.62")
  • Suggest using 2.5mm2 (AWG 14) for the trunk wire at least
  • Trunk wire would not be provided by default.

AC transformer

Brand
Mean Well
Type
waterproof or non-waterproof
Input
110v~240v AC
Output
12v DC
  • The waterproof AC transformers are using LP Series by default, IP67, -30~70℃ wide operation range.
  • The Non-waterproof AC transformers are using LRS Series by default, 300VAC input surge, 5G vibration, 70℃ operation.

Others

Certificate
CE, UL, ROHS
Intensity
-30~70℃
Warranty
Three Years
Accessories
  • stud bolts
  • nuts
  • washers
  • tube spacers
  • 1:1 layout template
  • wiring diagram
  • installation diagram
  • Stud bolts are necessary for installation, used to fix the signs on the backing wall.
  • Nuts and washers are only fit for situations where people can work at the other side of the backing wall, then can use washers and nuts to secure the stud bolts to the wall.
  • Tube spacers would be 20mm(0.8") length by default, made in stainless steel, used to make all the individual parts of the common model backlit signs have the same distance between the backing wall.

Warranty

  • In three years, if it is not the man-included damage, we will send you the damage part
  • After 2 year, because of the half-life, the LED lighting would be weaker. In order to keep the effect of the signs, we suggest changing the LED lights when you feel the brightness could not reach your requirement.

RESOURCES

Quick form

If we don't receive your email reply, we will send you a SMS.

Our signs products are all customized, different details would cause different costs. The more detail you can provide, the more exact price we will provide.

CAPTCHA image

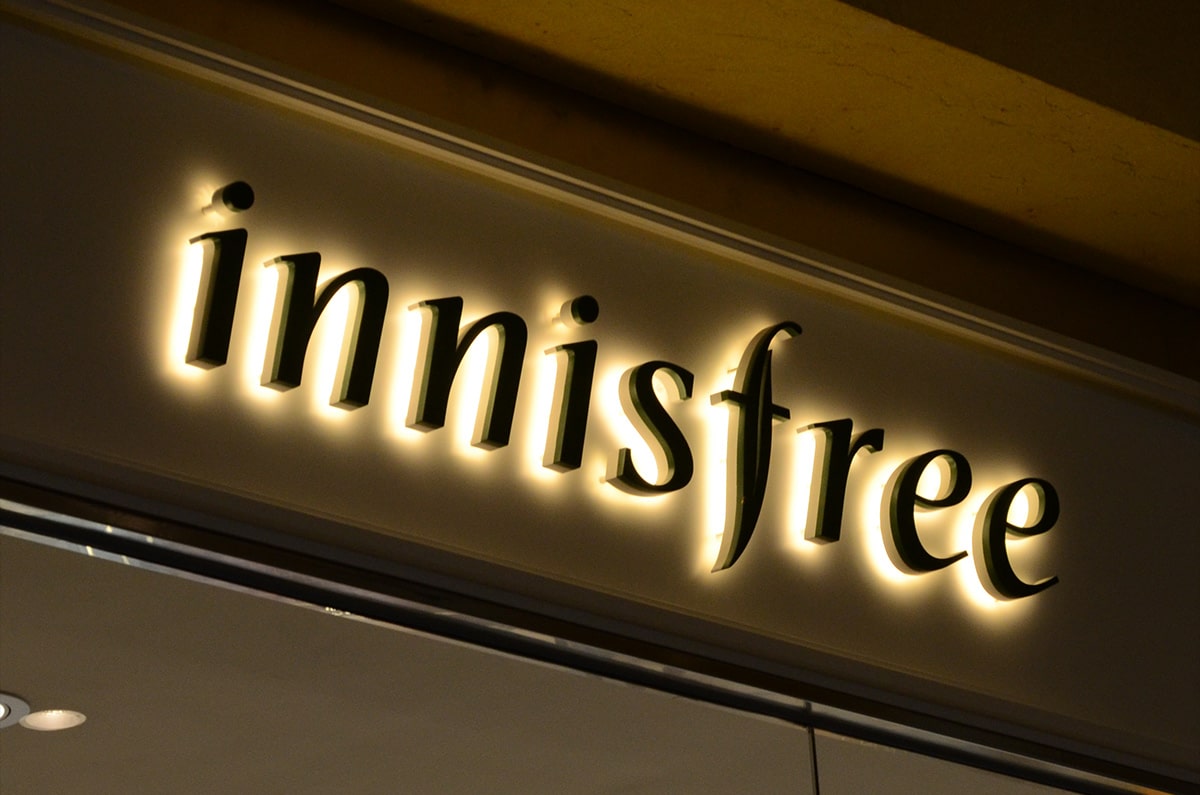

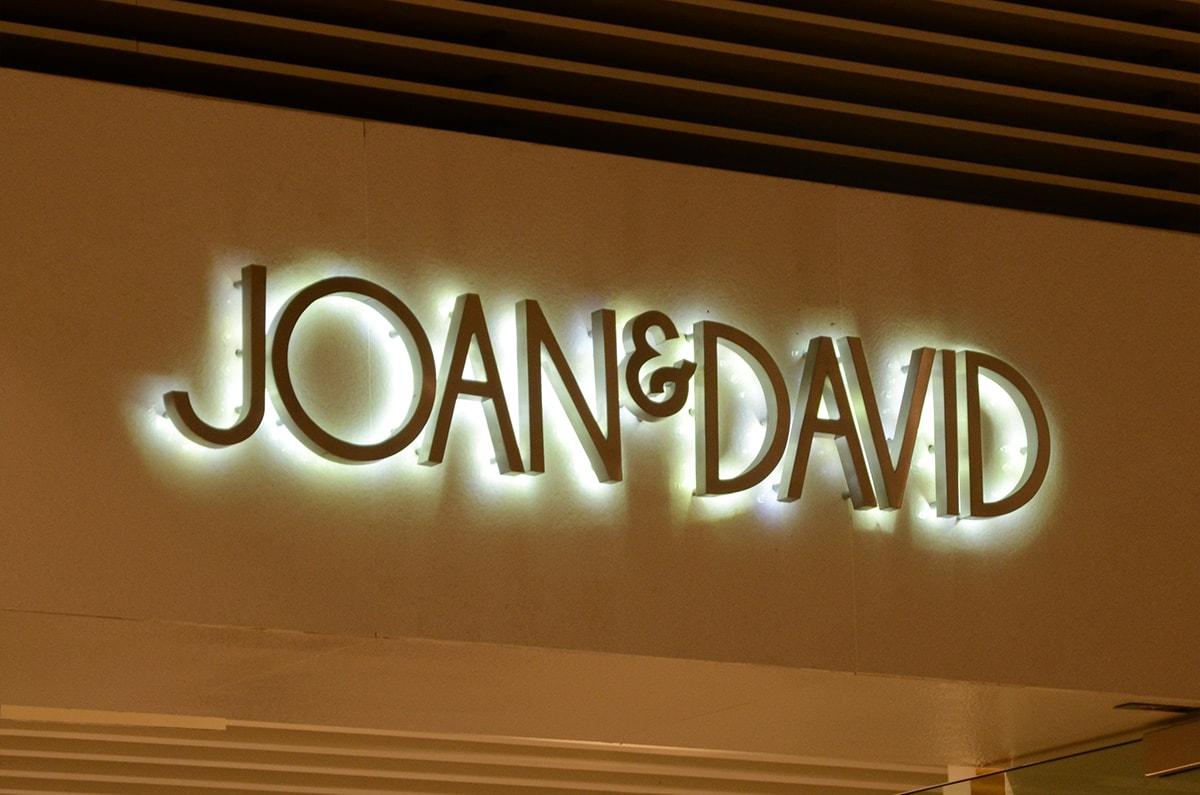

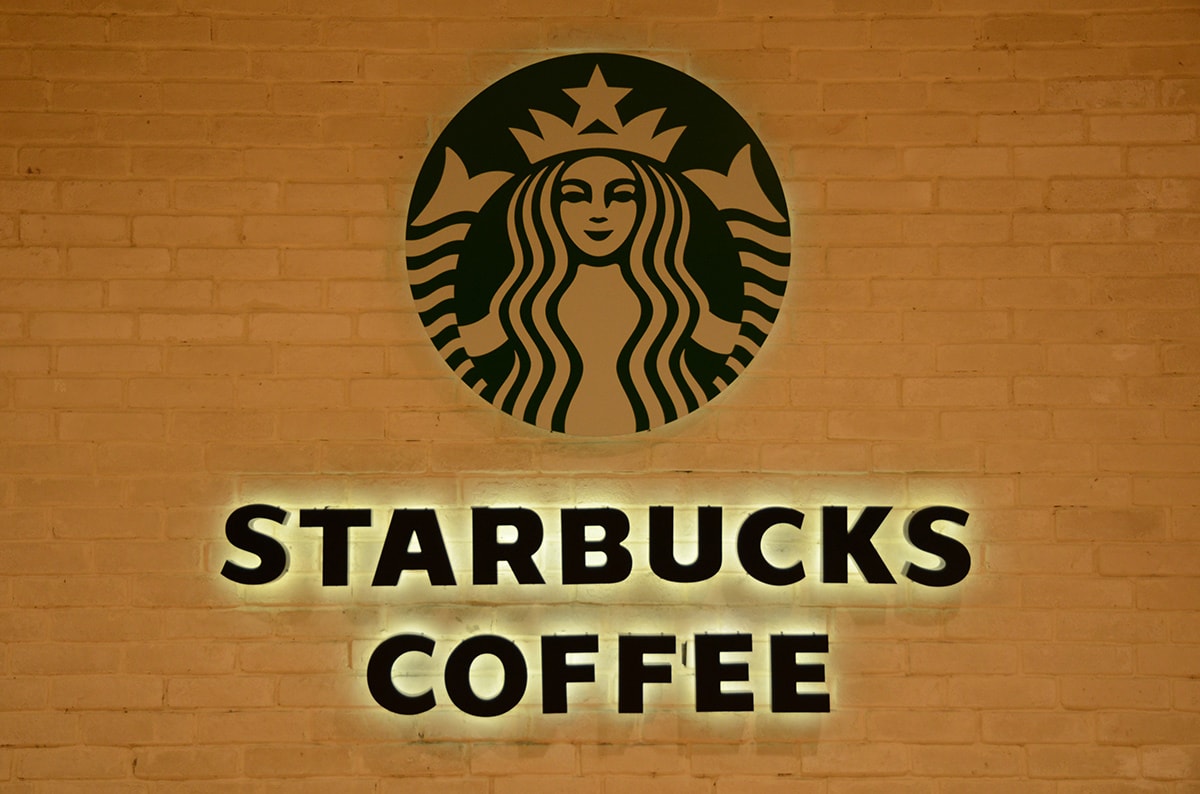

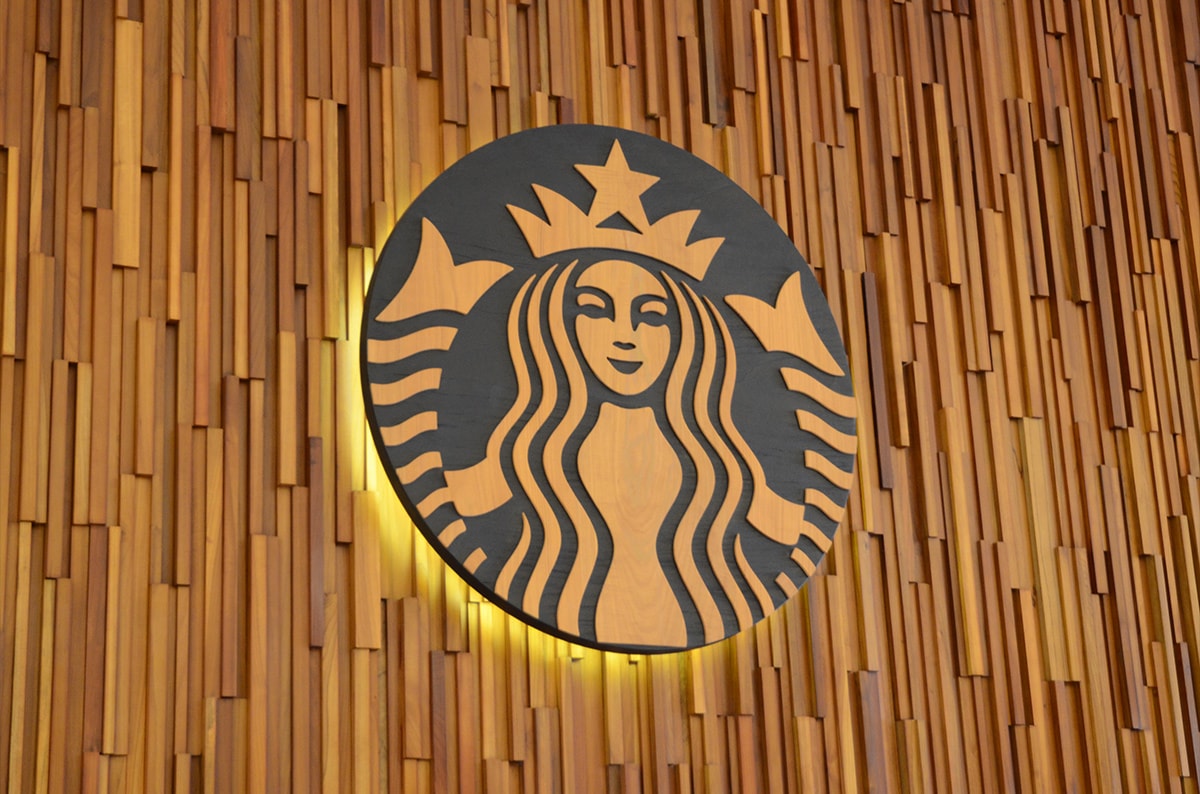

Common Model LED Backlit Signs Sample Case
