Luxury model LED backlit signs

Built by a 3D fabricated metal signs shell, part of CNC engraved acrylic back-panel is out of the signs shell and visible, LED lights in the signs shell. Have the best brightness and the best halo effect, need not be off the backing wall, easy for installation, excellent for indoor outdoor business, building, wall and home.

Detail of Luxury model LED backlit signs

Luxury model LED backlit signs

Features

Requested minimum width of strokes
10mm(0.39")
Requested minimum height of letters
100mm(3.94")
Default thickness
35mm(1.38")
Opal Acrylic Back-panel
Part in the metal signs shell, have the visible part out of the metal signs shell
Production time
In 15 business days by default
Installation
Need not off backing wall
  • Too small letters have limited space in the signs shell, causing too hard to place the LED lights evenly, unless using PCB LED, which fit for the mass production only.
  • Too big letters, higher than 60cm(23.62"), do not fit this option well. The acrylic back-panel would be too heavy, cause hard installation.

Metal Signs Shell

Material
304/316 stainless steel
Process
Fabrication, laser cutting, laser welding
Default thickness
25mm(1")
Surface finishes
  • Mirror polished stainless steel
  • Brushed stainless steel
  • Gloss powder coat paints
  • Semi-gloss powder coat paints
  • Flat powder coat paints
  • Mirror polished gold plating
  • Brushed gold plating
  • Angel hair gold plating
  • Mirror polished rose gold plating
  • Brushed rose gold plating
  • Angel hair rose gold plating
  • Mirror polished titanium plating
  • Brushed titanium plating
  • Angel hair titanium plating
  • Mirror polished copper plating
  • Brushed copper plating
  • Angel hair copper plating
  • Mirror polished brass plating
  • Brushed brass plating
  • Angel hair brass plating
  • Mirror polished bronze plating
  • Brushed bronze plating
  • Angel hair bronze plating
  • Vintage copper
  • Vintage brass
  • Vintage bronze
  • Angel hair vintage brass
  • Angel hair vintage copper
  • Angel hair vintage bronze
  • Metallic paint
  • Wood Grain
  • 304 stainless steel fit for most surrounding, 316 stainless steel would be used for the signs in marine environments.
  • The Plating process, vintage process and wood grain process would be finished by our partner, would cause about additional 2 business days for the production.

LED lights

LED type
LED module, LED strip, PCB LED
Life time
More than 100,000 hours
Lighting color
  • White (about 6000k color temperature)
  • Warm white (about 4000k color temperature)
  • Red
  • Blue
  • Green
  • Yellow
  • Orange(RGB)
  • Pink(RGB)
  • Purple(RGB)
  • Addressable RGB/RGBW LEDs
  • Using the BlueView brand LED by default. Also have Cree brand LED.
  • For the outdoor signs we will use the water-proof LED lights.

Back panel

Material
Acrylic
Process
CNC engraving
Default visible part thickness
10mm
  • Using the DonChamp brand acrylic by default. Also have Mitsubishi brand and Degussa brand.
  • Base the backlit letters detail, we have 10mm(0.39"), 15mm(0.59"), 20mm(0.79"), 25mm(1"), 30mm(1.18") thickness opal acrylic to get the 5mm(0.2"), 10mm(0.39"), 15mm(0.59") and 20mm(0.79") visible thickness

Electrical Wiring

Type
Plenum copper wire by default
Specification
1.5mm2 (AWG 16) by default
Default Length
60cm(23.62")
  • Suggest using 2.5mm2 (AWG 14) for the trunk wire at least
  • Trunk wire would not be provided by default.

AC transformer

Brand
Mean Well
Type
waterproof or non-waterproof
Input
110v~240v AC
Output
12v DC
  • The waterproof AC transformers are using LP Series by default, IP67, -30~70℃ wide operation range.
  • The Non-waterproof AC transformers are using LRS Series by default, 300VAC input surge, 5G vibration, 70℃ operation.

Others

Certificate
CE, UL, ROHS
Intensity
-30~70℃
Warranty
Three Years
Accessories
  • stud bolts
  • nuts
  • washers
  • 1:1 layout template
  • wiring diagram
  • installation diagram
  • Stud bolts are necessary for installation, used to fix the signs on the backing wall
  • Nuts and washers are only fit for situations where people can work at the other side of the backing wall, then can use washers and nuts to secure the stud bolts to the wall.
  • If you need the luxury model LED backlit signs off the backing wall, we will provide the stainless steel tube spacers with 20mm(0.8") length by default, electrical wiring and stud bolts can through the tube spacers, used to make all the individual part of the luxury model backlit signs have the same distance between the backing wall.

Warranty

  • In three years, if it is not the man-included damage, we will send you the damage part.
  • After 2 year, because of the half-life, the LED lighting would be weaker. In order to keep the effect of the signs, we suggest changing the LED lights when you feel the brightness could not reach your requirement.

RESOURCES

Quick form

If we don't receive your email reply, we will send you a SMS.

Our signs products are all customized, different details would cause different costs. The more detail you can provide, the more exact price we will provide.

CAPTCHA image

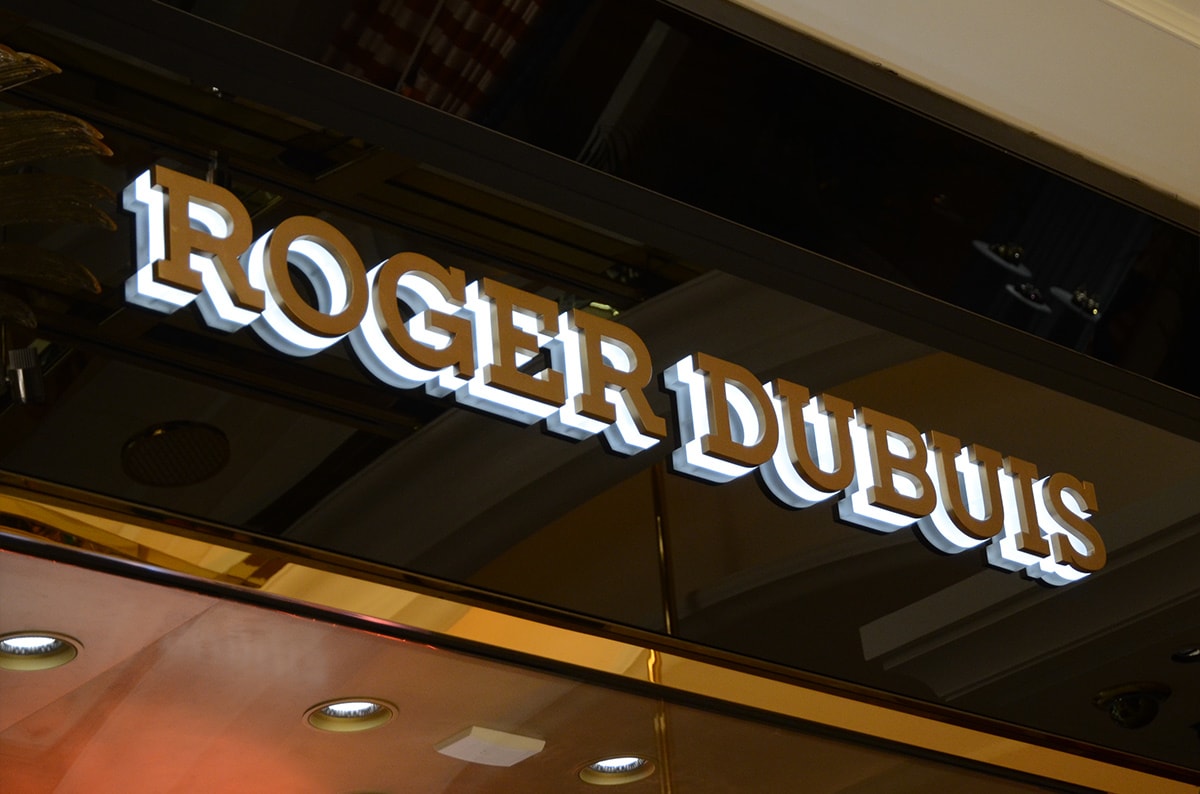

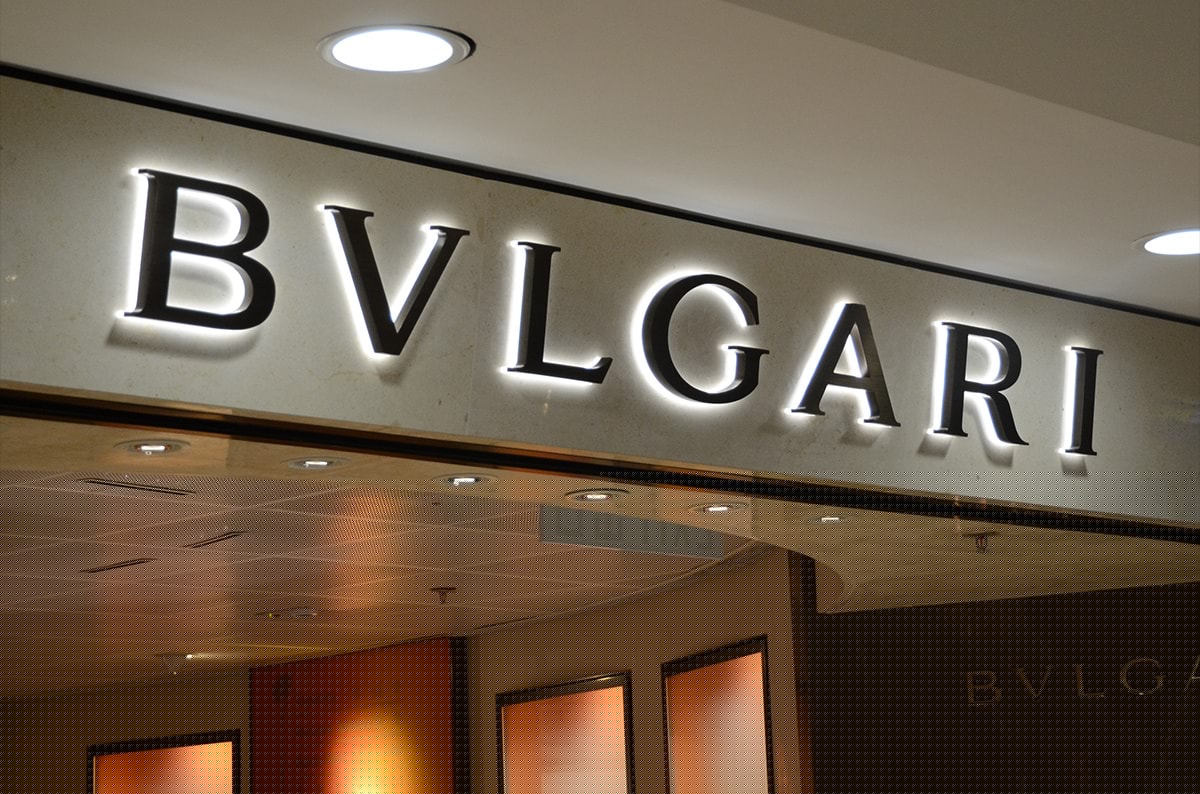

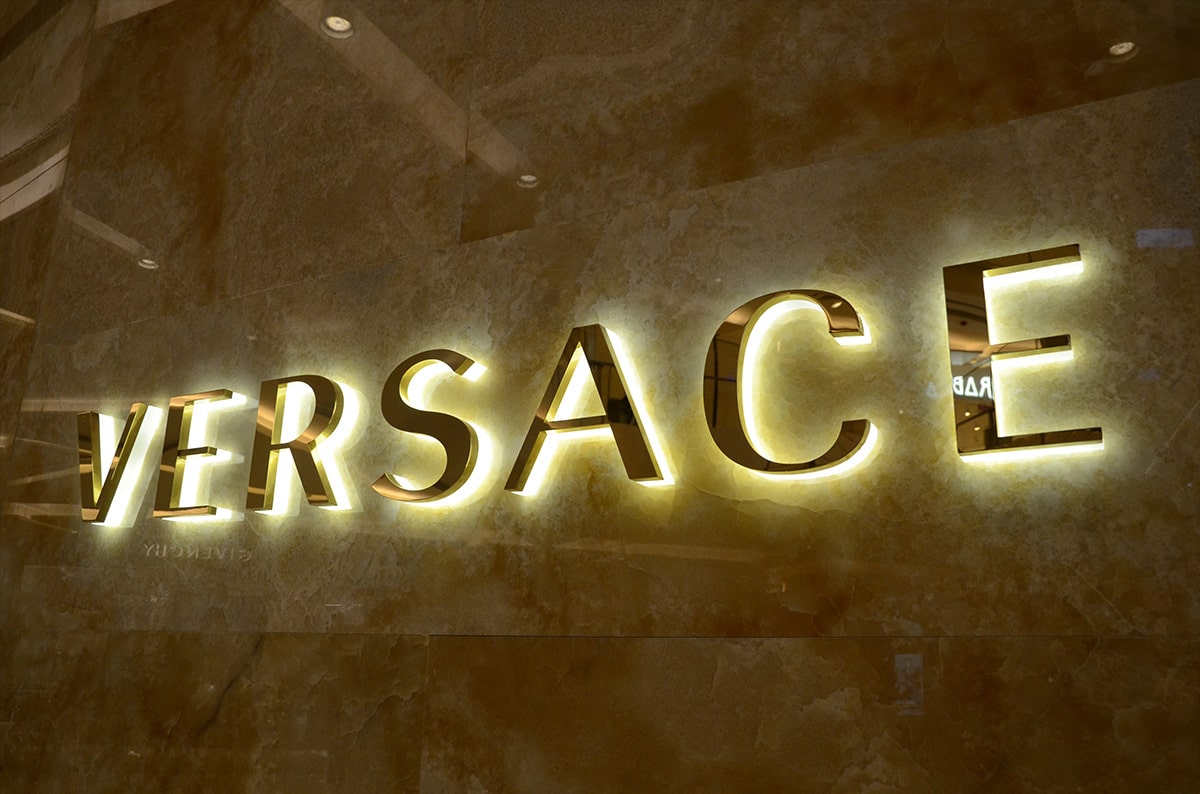

Luxury Model LED Backlit Signs Sample Case
